SEECS offers doctorate, postgraduate, undergraduate, and certificate level Programmes that owe their emergence to the relentlessly growing demand of professionals with expertise in Information Technology.
These Programmes have been planned to offer a blend of computers, communication technologies and other information retrieving/processing tools in order to provide the youth with the practicable skills to enter the world of opportunities and capitalize on the huge IT market of the 21st century. SEECS continuously seeks to stay in forefront as a centre of academic and research excellence. SEECS offers MS and PhD in Electrical Engineering with special focus on Radio Frequency (RF) & Microwave domain since 2010. The school works closely with industrial partners on joint Research & Development and consultancy projects.
The school holds state-of-the-art facilities for the design, fabrication and testing of microwave circuits and antennas. It possesses unique microwave measurement capabilities such as Anechoic Chamber for antenna testing, Electromagnetic Compatibility /Electromagnetic Interference Lab for electromagnetic compatibility and immunity measurements and PCB fabrication lab. The key facilities are used in teaching and research, as well as utilized for services to other academic and industrial partners.
Anechoic Chamber
 |

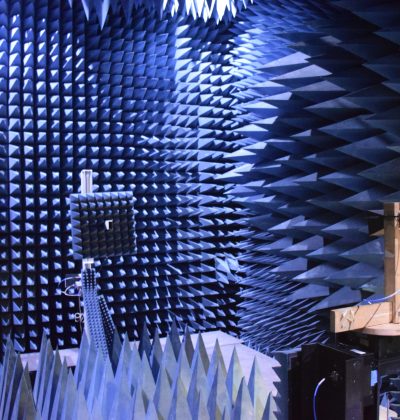

This facility is used to characterize antennas in the frequency range from 0.8GHz to 40GHz. The Anechoic Chamber is equipped with a near-field planner scanner and a far-field tower to measure the radiation pattern of a given antenna under test (AUT). The measurement software has the capability to transform the near-field data to far-field data for plotting antenna radiation patterns in 3-D. In addition, antenna arrays, Radar cross-section (RCS) measurements of RFID tags and other applications where an isolated environment is required can be supported by the anechoic chamber. Test Rate:The lab offers services to academic and industrial organizations in measuring the radiation patterns and gain of various kinds of antennas. The typical Antenna Pattern and Gain Measurement test (Antenna Characterization) cost is Rs 80,000/- (4-6 hours testing). For specialized testing which may require large data points, changes in the chamber, etc., the cost will be estimated based on the number of hours required for the job. |
Our Team
Meet Our Research Team
 Dr. Nosherwan Shoaib Research Project Lead |
Electromagnetic Compatibility / Electromagnetic Interference (EMC / EMI) Lab
This lab aims at imparting EMC/EMI knowledge to students and researchers both from NUST and other universities and organizations. In addition, the facility is utilized to provide EMC/EMI pre-compliance testing of commercial products. Presently, the lab has the capability to perform testing as per European standards including Conducted Emissions, Radiated Emissions, Radiated Immunity, Harmonic & Flicker, Electrostatic Discharge and Surge, Burst & Power Fail test. The mission of the lab is to provide EMC/I testing, consultancy and training services for local industry & academia to promote indigenous development of electronic products made in Pakistan.
| # | Manufacturer | Equipment Description | Model | Technical Parameters |
|---|---|---|---|---|
| 1. | Rohde and Schwarz | LISN Four Line V-Network | ENV432 | 9 kHz – 30 MHz |
| 2. | Keysight | Signal Generator | N5173B | 9 kHz – 40 GHz |
| 3. | Keysight | EMI Receiver | PXE N9048B | 1 Hz – 26.5 GHz |
| 4. | ETS Lindgren | Electric Field Probe | HI-6053 | 10 MHz – 40 GHz |
| 5. | Rohde and Schwarz | Power Sensor | NRP 18S-25 | Max 25W (Sensing capability) |
| 6. | TESEQ | EM Clamp | KEMZ 801 | 10 kHz – 1000 MHz, 50 Ω |
| 7. | TESEQ | Calibration Fixture | CAL KEMZ | Conforms with IEC 61000-4-6 Ed |
| 8. | Yokogawa Electric | Digital Oscilloscope | DL9140 | DC – 1GHz 5 Gb/s |
| 9. | Haida | Environmental Chamber | NA | -40o C – +150o C 20 – 80% |
| 10. | Haida | Vibration Resistance Functional Test | NA | Freq: 15–300 Hz, Accel: 0.04 Freq: 1000–2000 Hz, Accel: 0.025 |
EMC/Radio Standards
EN 301 489-1/19, EN 55032. EN 55035, EN 301 893, EN 303 413, EN 61000, EN 55024, IEC 60068, IEC 61000, CISPR 22, MIL-STD-461G
Test Rate:
| Test Type | Typical Rate | |
|---|---|---|
| 1. | EMC/EMI Testing for ITE Equipment | Rs. 290,000/- |
| 2. | Safety Testing as Per IEC 60950-1 | Rs. 90,000/- |
| 3. | Radio Testing | Rs. 85,500/- |
